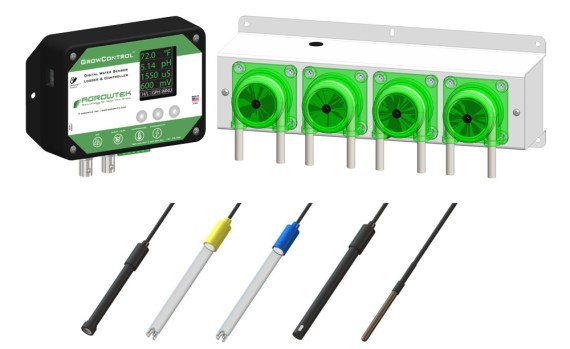

AgrowDose™ MDX Nutrient, pH & ORP Dosing Systems

Description

Autonomous | Easy to Use | Accurate & Reliable | 1, 2, 4, 5 or 6 Pumps

Precision Digital Sensors

Data Logging & On-Board Graphing

Tough, Reliable Pumps

Easy Setup & Operation

Description

AgrowDose™ MDX dosing systems are autonomous pH and nutrient set-point control systems for recirculating hydroponic systems, stock tanks,etc. Available with 1, 2, 4, 5 or 6 independent pump heads. Configure each pump as a nutrient part, pH up, or pH down part. Precision sensors and rugged pumps offer reliable and accurate control of reservoirs large and small. Built with FDA compliant tubing, the pumps inject chemicals quickly into water lines up to 25psi. The controller’s built-in color display provides an easy to use interface for monitoring the sensor readings and configuring the dosing settings. Display includes features such as:

• High/low history
• Graphical history
• Alarm set points with Buzzer
• Guided sensor calibration screens
• Manual pump priming
• Back-light shut-off timer

Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable autonomous dosing applications.

Sensors

Water Temperature
-20 – 60°C

pH
0-14 pH

Conductivity
0-5000 uS (0-2500ppm)

O.R.P. or D.O.
+/-1000mV / 0-20mg/ml
