Description
- laboratory incubator – it always creates the right climate
- chamber volume 222 litres
- temperature range: from 0°C to 100°C without humidity, from 10° C to 90° C with humidity
- patented cooling system (environment-friendly working medium R 134a) and air flow in the chamber ensure fast and accurate distribution of the selected temperature and humidity in the chamber and thus the ideal process of sample heating and reduction of moisture condensation in the chamber
- offers high operation comfort, precise temperature control, possibility of achieving extremely short times of temperature changes and short times of temperature and humidity equalization in the chamber after the door opening
- suitable for use in research on germs, plant or tissue cultures, insects, stability tests, etc.
- comfortable design with multi-processor Fuzzy logic control system, controls placed on a foil keyboard, process information displayed on LED display.
- wide selection of optional equipment and accessories
- output for connecting a printer or PC
- possibility of validation (IQ, OQ)

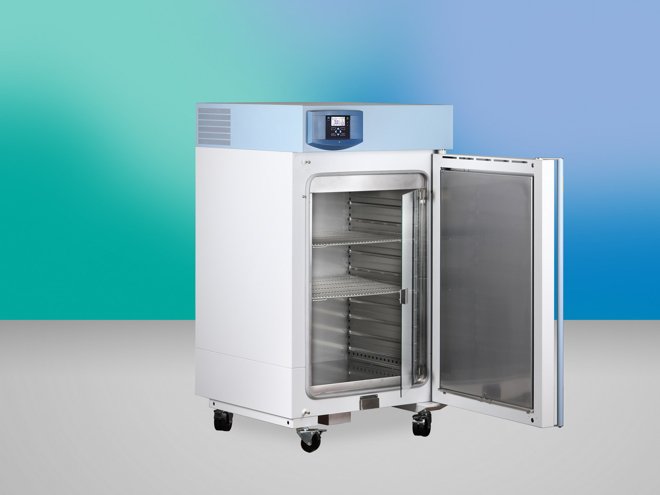

Interior of stainless steel material
| volume | 222 l |
| depth | 520 mm |
| width | 540 mm |
| height | 760 mm |
Volume of the steam space
| 299 aprox. l |
Trays, stainless steel *)
| Min. distance between trays | 70 mm |
| number usual | 2 pcs |
| number max. | 10 pcs |
| Storage area (w × d) | 520 × 485 mm |
Number of outer metal doors
| number | 1 pcs |
Number of inner glass doors
| number | 1 pcs |
Admissible weight of trays
| together inside the oven | 70 kg |
| per 1 tray | 30 kg |
Electricity data
| Max. power | 1850 W |
| IP 20 | |
| mains 50/60Hz | 230 V |
Temperature data
| Cooling/down time from 22 °C to 10 °C | < 17 min |
| Heating/up time to 37 °C from the ambient temperature | 11 min |
| Working temperature from 0,0 to | 100 °C |
| Working temperature from -20 to | 100 °C |
| Temperature accuracy – in time | 0,2 ± °C |
| Temperature accuracy in time at 10 °C | < 0,5 ±°C |
| Temperature accuracy in time at 37 °C | < 0,5 ±°C |
Recovery time after 30 sec. door open according DIN 12 880
| at 37 °C | 3 min |
| at 50 °C | 6 min |
Relative humidity
| range | 10–98 % |
Heat emission
| at 37 °C | 63 W |
Outer dimensions (incl. Door and handle, and Rollers)
| depth | 895 mm |
| width | 760 mm |
| height | 1370 mm |
Weight
| brut cca | 184 kg |
| nett cca | 135 kg |
