Description
Type I / Ultrapure water (UPW) water

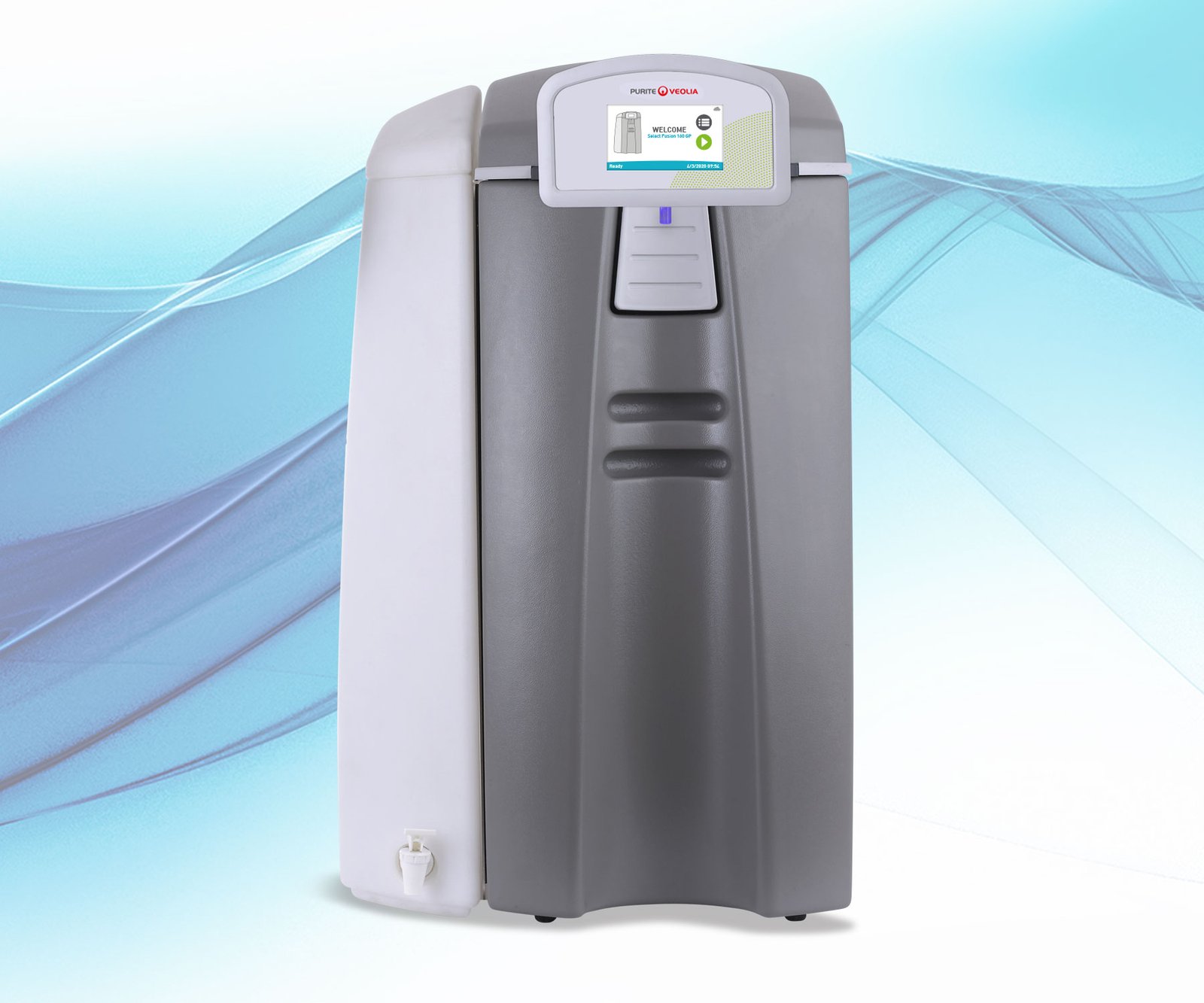

The Purite Fusion is a self-contained water purification unit that delivers a flow of purified water to a consistent quality of 18MΩ.cm. It is ideal for the most demanding laboratory processes including life sciences, such as histology, cell and tissue culture, DNA sequencing and IVF.
Purite Fusion | Overview
Designed for all laboratory applications requiring a reliable and consistent supply of purified water to 18.2MΩ.cm, the Purite Fusion water purification unit provides an advanced unit, which is simple to install, use and maintain.
Combining reverse osmosis, deionisation, ultra-filtration and photo-oxidation in a compact, self-contained unit, the Purite Fusion has an intelligent energy-save mode and is available with a range of options. These include: dual water quality Type I and II, remote dispense pod and a choice of external storage tanks, plus a water and energy-saving ECO option.
Purite Fusion | Features
-
Dual water quality available 1-10MΩ.cm (Type-II) and 18.2MΩ.cm (Type-I)
-
Remote Dispense Pod (Optional)
-
Energy saving intelligent stand-by mode
-
Dispense rate of up to 2 litres/min
-
Water quality parameters, TOC, MΩ.cm, °C and flowrate displayed
-
Selectable manual and volumetric dispense feature
-
5000m.wt cut off internal ultrafiltration for endotoxin, RNase/DNase removal
-
Dual wavelength (185nm/254nm) UV irradiation
-
Integral TOC indicator
-
UV LED disinfection incorporated within the dispense head
-
ECO option now available offering 50% recovery which equates to a significant reduction in water usage and waste
-
WiFi enabled for remote monitoring and operation.
Purite Fusion | Unit Specification
| Unit specification | 160 | 320 |
|---|---|---|
| Width (mm) | 440 | 440 |
| Depth (mm) | 560 | 560 |
| Height (mm) | 750 | 750 |
| Maximum Shipping Weight (kg)* | 36 | 41 |
| Maximum Working Weight (kg)* | 51 | 59 |
| Installation requirements | 160 | 320 |
|---|---|---|
| Power | Single Phase, 110-230V, +/- 10%, 50/60 Hz | |
| Feed Water | Potable | Potable |
| Maximum TDS (ppm) | 1000 | 1000 |
| Minimum inlet pressure – psi (bar) | 30 (2.1) | 30 (2.1) |
| Maximum inlet pressure – psi (bar) | 90 (6.2) | 90 (6.2) |
| Feed water temperature | 1-35oC | 1-35oC |
| Product outputs @ 10ºC (l/hr)* | 14.4 | 30 |
| Product outputs @ 25ºC (l/hr)* | 24 | 48 |
*Outputs based on a feed water pressure of 4 bar
Purite Fusion | System / Treated Water Specification
| System specification | |
|---|---|
| Pure water storage | 20 litre storage tank as standard (External 50 & 100 litre tanks available) |
| Display panel | LCD – Colour touch screen |
| Pre-treatment cartridge | Yes |
| Reverse osmosis | Yes |
| Deionisation cartridge | Yes |
| Internal filtration | Ultrafiltration |
| Point of use | UV / LED |
| UV lamp | 185nm / 254nm |
| Recirculation pump | Yes |
| Ultrapure polishing cartridge | Yes |
| Treated water specification | High Purity Dispense | Purified Water Storage Tank |
|---|---|---|
| Inorganics | up to 18.2MΩ.cm | > 1MΩ.cm |
| pH1 | Neutral | |
| Bacteria | < 0.1cfu/ml | – |
| Organics – TOC (ppb) | < 5 | < 50 |
| Particles | 0.005µm | – |
| Endotoxins | < 0.001EU/ml | – |
| DNases | < 4pg/µl | – |
| RNases | < 0.01ng/ml | – |
| Dispense modes | Latched – hold – volumetric | |
| Dispense flow rate | up to 2.0 l/min | – |
