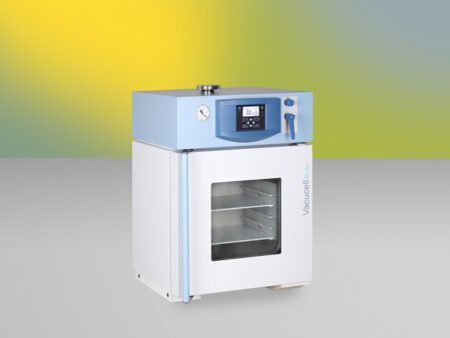

VACUCELL 22 – ECO line

Description

• fast, gentle, environmentally friendly – laboratory drying oven for higher demands
• chamber volume 22 litres
• temperature range from 5°C above ambient to 200°C
• characterized by noiseless operation and gentle sample heating in the chamber, offering high-quality and safe heating and drying of samples up to constant weight
• high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
• suitable for perfect drying of thermally labile and oxidation sensitive materials, complicated shapes, drying of samples to constant weight, etc. in vacuum
• wide selection of optional equipment and accessories (e.g. supplementing the “Vacustation” base with the option of installing a selected type of a vacuum pump,…)

• Interior of stainless steel material No. 1.4571

  volume	22 l
  depth	260 mm
  width	340 mm
  height	300 mm

  Tray

  number	2 pcs
  racks max.	5 pcs

  Minimal Shelves distance

  height

  36 mm

  Usefull dim. of shelf

  width × depths

  280 × 236 mm

  External dimensions (including door and handle)

  depth	500 mm
  width	560 mm
  heights(incl. foots)	780 mm

  Package dimensions

  depth	660 mm
  width	700 mm
  height (incl. palette)	920 mm

  Weight

  brut	76 kg
  net	65 kg

  Working temperature (regulation start)

  from 5 °C over ambient temp to

  200 °C

  Temp. deviations acc. to DIN 12 880 Part 2 from working temp – Al shelves pressure 5–10 mbar**

  in time to:	0,4 ± °C
  in space, temperature 100 °C do:	2 ± °C
  in space, temperature 200 °C do:	5 ± °C

  Temp. deviations acc. to DIN 12 880 Part 2 from working temp – ss shelves pressure 5–10 mbar**

  i time to:	0,5 ± °C
  in space, temperature 100 °C do:	10 ± °C
  in space, temperature 200 °C do:	18 ± °C

  Time of rise onto 98 % voltage 230 V – (Al shelves pressure 5–10 mbar)

  onto temp 100 °C	60 min
  onto temp 200 °C	80 min

  Time of rise onto 98 % voltage 230 V – (shelves pressure 5–10 mbar)

  onto temp 100 °C	130 min
  onto temp 200 °C	170 min

  Heat radiation

  at 100 °C	150 W
  at 200 °C	300 W

  Vacuum connection

  feedthrough needle valve for inert gas or air	8 mm
  measuring acces (ISO KF)	40 mm
  vacuum connection measuring DN (ISO KF) Including hose end Ø 12 mm	16 mm

  Electric parameters – mains 50/60 Hz

  nominal voltage	230 V
  mains 50/60 Hz	0,8 kW
  current	3,5 A
  input in stand by mode	5 W

  Max. permissible load of the shelves

  inside the oven	35 kg/oven
  per shelves	20 kg

  Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage.

  Changes in the design and make reserved.
  The values may differ depending on specific charge and media parameters.
